The Trixfer:
A Legal, Hassle free way to plug multiple lights into a single circuit.
Replace your two-fers that are in code violation.
A Legal, Hassle free way to plug multiple lights into a single circuit.
Replace your two-fers that are in code violation.
Common Uses:
-Daisy Chain up to four lights on one circuit at your prefered spacing with limited connections- Less to troubleshoot!
-Replace the electric raceway circut pigtails with Female Trixfers to provide extra flexibility in spaces with limited circuits!
-Replace V style two fers with trixfers to negate the common 36” distance between connectors- with a trixfer your lights can be as far
apart as needed without adding extra cable!
-Replace Y style two-fers with trixfers to clean up the bulk in your cabling- the trixfer is a simple inline connector to replace so much of
the taping and angles involved!
-Replace the jumpers in your inventory to always have a twofer available for limited additional cost
-Replace the connectors on commonly twofered lights (such as tormentors or box booms) to save equipment and hassle.
-Daisy Chain up to four lights on one circuit at your prefered spacing with limited connections- Less to troubleshoot!
-Replace the electric raceway circut pigtails with Female Trixfers to provide extra flexibility in spaces with limited circuits!
-Replace V style two fers with trixfers to negate the common 36” distance between connectors- with a trixfer your lights can be as far
apart as needed without adding extra cable!
-Replace Y style two-fers with trixfers to clean up the bulk in your cabling- the trixfer is a simple inline connector to replace so much of
the taping and angles involved!
-Replace the jumpers in your inventory to always have a twofer available for limited additional cost
-Replace the connectors on commonly twofered lights (such as tormentors or box booms) to save equipment and hassle.
The Male- Female version
Includes a male plug to get
power from the circuit, a female
connector built in to draw power
nearby, and a tail to go to
another female connector at
any specified distance.
Includes a male plug to get
power from the circuit, a female
connector built in to draw power
nearby, and a tail to go to
another female connector at
any specified distance.
The Female-Female version
Includes two female connectors
in one housing and a tail to go
to a male connector at any
specified distance.
Includes two female connectors
in one housing and a tail to go
to a male connector at any
specified distance.
*The Male Female is the most common version as it allows your lights to be as far apart as the tail you specifiy.
*The Female Female is useful in
specific situations when you need two
neighboring lights ganged together,
or for replacing raceway circuit pigtails.
specific situations when you need two
neighboring lights ganged together,
or for replacing raceway circuit pigtails.

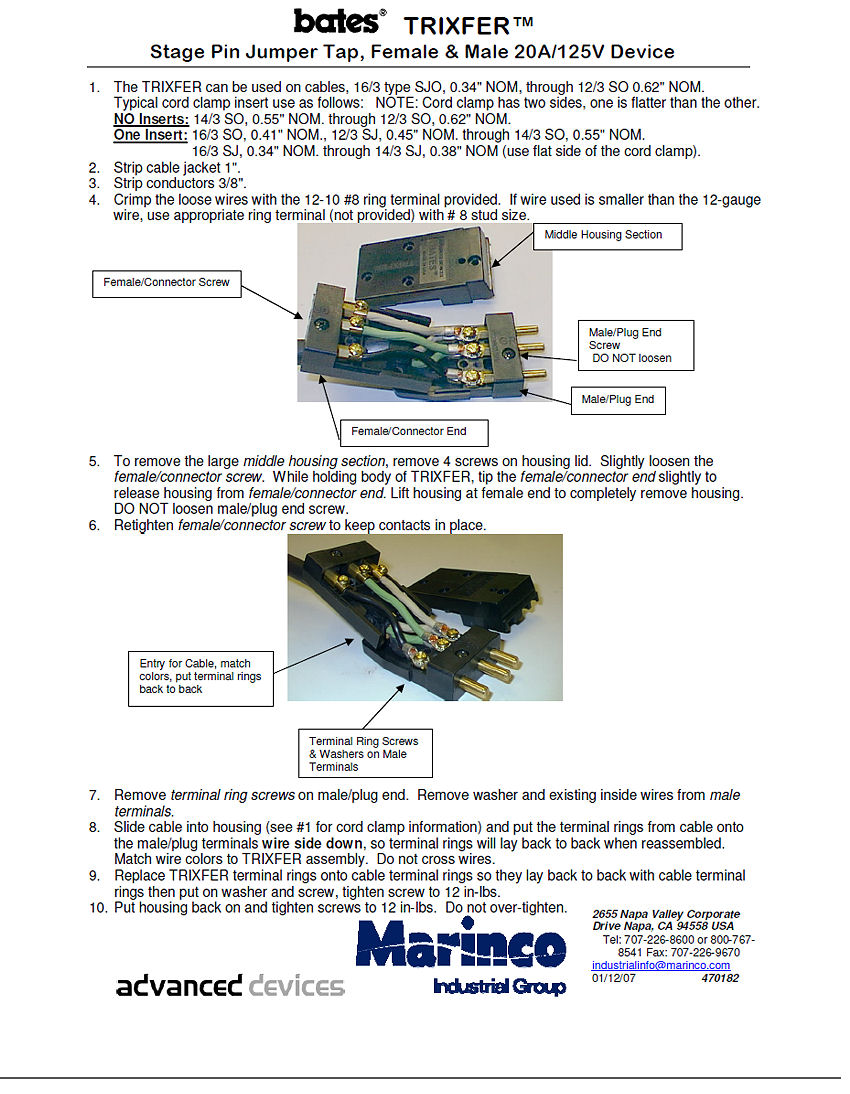

Trixfer Assembly Instructions
|
| UL Listing Certificate |
Now UL Listed!
Cert# 20121129-E111732
Cert# 20121129-E111732
Click for Large View
